CFUKF455KE1X-R0 LTUC455KEx extremely fl at GDT characteristic

Brand Name : HM

Model Number : KHZ

Place of Origin : wuxi

MOQ : 1000

Price : $1.25

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000

Delivery Time : 25 day

Packaging Details : REEL

Certification : ISO ,ROHS

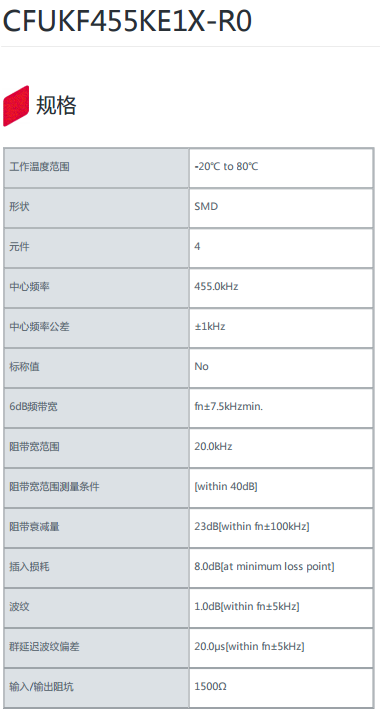

CENTER FREQUENCY : 455KHZ

3dB BANDWIDTH : 5.0KHZ MIN

6dB BANDWIDTH : 7.5KHZ

40dB BANDWIDTH : 20KHZ

RIPPLE : 1.0 dB

INSERTION LOSS : 8.0 dB

STOP BAND ATTENTION : 23 dB

GDT Deviation : 20 µS

Input/Output Impedance : 1500 OHM

Contact Now

The CFUKF series is comprised of small, high-performance,
thin (4.0mm) fi lters consisting of 4 ceramic elements.
The fi lters exhibit an extremely fl at GDT
characteristic.
The fi lters are recommended for digital
communication applications and are perfect in hand-held
cellular phones, etc.

CFUKF455KE1X-R0 LTUC455KEx extremely fl at GDT characteristic

Alternative Murata discontinued products

CFUKF455KE1X-R0 LTUC455KEx extremely fl at GDT characteristic Images
