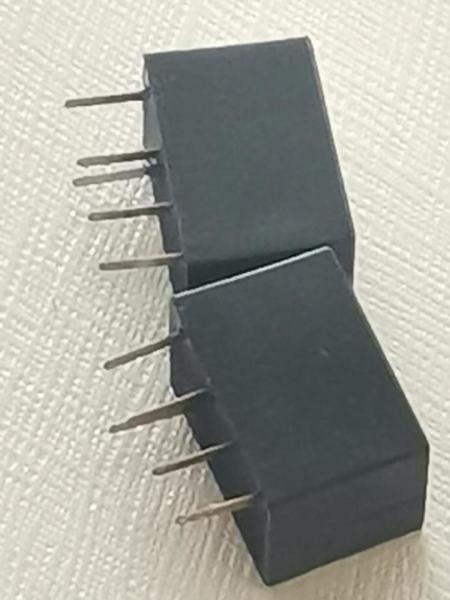

LT455KEW 455KHZ 1500ohm Microstrip Bandpass Filter

Brand Name : HM

Model Number : KHZ

Certification : Rohs，ISO

Place of Origin : wuxi

MOQ : 1500

Price : $1.025

Payment Terms : Western Union, MoneyGram

Supply Ability : 1000000

Delivery Time : 25 day

Packaging Details : In standard export packing as per manufacturer

Nominal Center Frequency (fn) (kHz) : 455.0

6dB Bandwidth (kHz) : fn±7.5 min.

Stop Bandwidth (kHz) : fn±20.0 max. [within 50dB]

Stop Band Attenuation (dB) : 40 min. [within fn±100kHz]

Insertion Loss (dB) : 9.0 max. [at minimum loss point]

Ripple (dB) : 1.0 max. [within fn±5kHz]

Input/Output Impedance (ohm) : 1500

GDT Deviation (μs) : 30.0 max. [within fn±5kHz]

Contact Now

1. ELECTRONICAL SPECIFICATIONS

A. CENTRE FREQUENCY(f.) : 455 KHz±1.0KHz.Max.

B. BAND WIDTH AT 3dB : ±7.5 KHzMin(TO 455 KHz)

C. BAND WIDTH AT 40dB : ±20.0 KHzMin(TO 455 KHz)

D. STOP BAND ATTENUATION : 35dBMin(AT f0 ± 18 to ± 33KHz)

E. STOP BAND ATTENUATION : 40dBMin.(AT f.±100KHz)

F: STOP BAND ATTENUATION : 20dBMin(AT f0 ±0.1 to ±1 MHz)

G: RIPPLE : 1.0dBMax.(AT f.±5.0 KHz)

H: INSERTION LOSS : 4.0dBMax.(AT THE SMALLEST LOSS)

I: TEMPRATURE COEFFICIENT

OF CENTER FRENQUENCY : ±50 PPM/℃ MAX.(-20 TO +80 ℃)

J: INPUT/OUPUT IMPEDANCE : 1.5 KΩ

NOTE : A) CENTER FREQUENCY SHALL BE DEFIED AS THE CENTRAL

VALUE OF THE BAND WITH AT 6dB

B) TEMPRATURE COEFFICIENT OF CENTER FREQUENCY SHALL

BE DEFINED AS THE AVERAGE OF THE CENTRAL FREQUECY .
